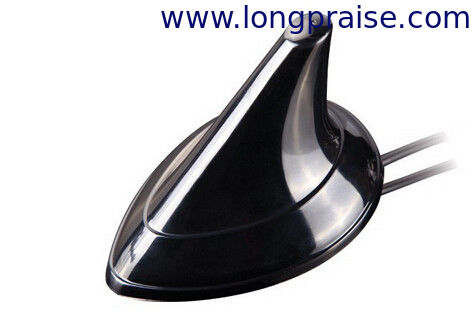

GPS and GSM Combination Antenna LPCG004

GPS and GSM Combination Antenna LPCG004

GPS and GSM Combination Antenna LPCG004

Product Details:

Place of Origin: Guangzhou
Brand Name: LongPraise
Certification: LongPraise
Model Number: LongPraise

Payment & Shipping Terms:

Minimum Order Quantity: 1
Packaging Details: OPP/paper box
Delivery Time: 3-7working days
Payment Terms: T/T WESTERUNION PAYPAY
Supply Ability: 30000PCS/DAY
Contact Now
Detailed Product Description

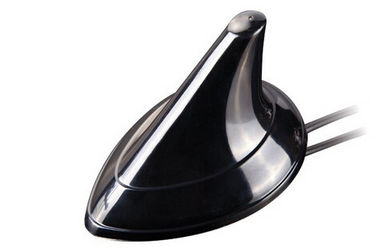

GPS and GSM Combination Antenna LPCG004

GPS and GSM Combination Antenna LPCG004



Item

Specifications

GPS Antenna

Dielectric

Antenna

Center Frequency

1575.42±1MHz

Band Width

CF±5MHz

Polarization

RHCP

Gain

5dBic(Zenith)

V.S.W.R

<1.5

Impedance

50OHM

Axial Ratio

3dB(max)

LNA

Gain

28±2dBi

Noise Figure

<1.5

Ex-band Attenuation

12dB CF+50MHz/16dB CF-50MHz

V.S.W.R

<2.0

Supply Voltage

2.2-5V DC

Current Consumption

5-15mA

GSM Antenna

Frequency Range

824-960MHz/1710-2170MHz

V.S.W.R(min)

<2.5

Polarization

Linear

Gain

2dBi

Impedance

50OHM

Mechanical

Cable

RG174

Connector

SMA/MCX/FAKRA or others

Radome Material

ABS

Mounting Method

Magnet

Environmental

Operating Temperature

-40-+85 degree

Relative Humidity

Up to 95%

Vibration

10 to 55Hz with 1.5mm amplitude 2hours

Environmentally Friendly

ROHS Compliant
