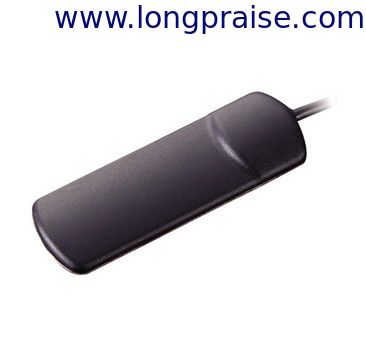

RG174 62.2*22*0.8mm Adhesive 824-894/1710-2170/2400-2500MHz External GSM Antenna (LPGM005)

RG174 62.2*22*0.8mm Adhesive 824-894/1710-2170/2400-2500MHz External GSM Antenna (LPGM005)

    • RG174 62.2*22*0.8mm Adhesive 824-894/1710-2170/2400-2500MHz External GSM Antenna (LPGM005)
    • RG174 62.2*22*0.8mm Adhesive 824-894/1710-2170/2400-2500MHz External GSM Antenna (LPGM005)
    • RG174 62.2*22*0.8mm Adhesive 824-894/1710-2170/2400-2500MHz External GSM Antenna (LPGM005)
  • RG174 62.2*22*0.8mm Adhesive 824-894/1710-2170/2400-2500MHz External GSM Antenna (LPGM005)

    Product Details:

    Place of Origin: Guangzhou
    Brand Name: LongPraise
    Certification: LongPraise
    Model Number: LongPraise

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Packaging Details: OPP/paper box
    Delivery Time: 3-7working days
    Payment Terms: T/T WESTERUNION PAYPAY
    Supply Ability: 30000PCS/DAY
    Contact Now
    Detailed Product Description
    Frequency Range: 824-894/1710-2170/2400-2500MHz PCB Dimension: 62.2*22*0.8mm
    Cable: RG174 Mounting Method: Adhesive

    RG174 62.2*22*0.8mm Adhesive 824-894/1710-2170/2400-2500MHz External GSM Antenna (LPGM005)

    RG174 62.2*22*0.8mm Adhesive 824-894/1710-2170/2400-2500MHz External GSM Antenna (LPGM005)

    RG174 62.2*22*0.8mm Adhesive 824-894/1710-2170/2400-2500MHz External GSM Antenna (LPGM005)



    Item

    Specifications

    Antenna

    Frequency Range

    824-894/1710-2170/2400-2500MHz

    Polarization

    Linar

    Gain

    2dBi(Zenith)

    V.S.W.R

    2.0

    Impendance

    50Ω

    PCB Dimension

    62.2*22*0.8mm

    Mechanical

    Cable

    RG174

    Connector

    SMA or others

    Radome Material

    ABS

    Mounting Method

    Adhesive

    Environmental

    Operating Temperature

    -40 --- +85 degree

    Relative Humidity

    Up to 95%

    Vibration

    10 to 55Hz with 1.5mm amplitude 2hours

    Environmentally Friendly

    ROHS Compliant











    Company Overview

    Long Praise Inc Limited is a professional manufacturer and trader of External GPS antenna,GSM antenna,WLAN antenna, 4G antenna,DVBT antenna. All kinds of antennas pass ROHS certificates and especially GPS antenna get CE/FCC/SGS/ROHS approved. With 4 years exporting experience, Our products are highly praised by our customers. Until now, most of our customers are in EU and USA, all the customers comment our products of EU quality and Chinese Price We are not only equipped with a group of network analyzers, spectrum testers, noise detectors and other advanced apparatus, but also have antenna experts and professional testing sites

    Both the quality and price of our products are competitive. We also deliver goods in time and provide perfect after-sale service





    Our Services And Advantage

    1>. Profession information management system.

    2>. Receive small order purchase.

    3>. Excellent technology and technicians .

    4>. 100% inspection before shipping out.

    5>. We are the factory, the price is lower than foreign trade company.

    6>. Fast delivery and best packaging.

    7>. One-stop service.

    8>. Good reputation.

    9>.1 Year Warranty



    Item Specifications
    Antenna Frequency Range 824~894/1710~2170/2400~2500MHz
    Polarization Linear
    Gain 2dBi(Zenith)
    V.S.W.R <2.0
    Impedance 50Ω
    PCB Dimension 62.2*22*0.8mm
    Mechanical Cable RG174
    Connector SMA or others
    Radome Material ABS
    Mounting Method Adhesive
    Environmental Operating Temperature -40℃~+85℃
    Relative Humidity Up to 95%
    Vibration 10 to 55Hz with 1.5mm amplitude 2hours
    Environmentally Friendly ROHS Compliant
