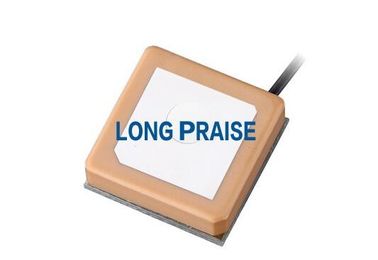

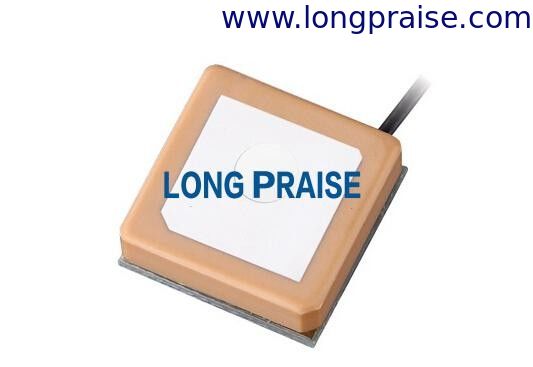

Passive GPS ceramic patch antenna

Passive GPS ceramic patch antenna

Passive GPS ceramic patch antenna

Product Details:

Place of Origin: Guangzhou
Brand Name: LongPraise
Certification: LongPraise
Model Number: LongPraise

Payment & Shipping Terms:

Minimum Order Quantity: 1
Packaging Details: OPP/paper box
Delivery Time: 3-7working days
Payment Terms: T/T WESTERUNION PAYPAY
Supply Ability: 30000PCS/DAY
Contact Now
Detailed Product Description

25x25x4 GPS Internal Antenna

25x25x4 GPS Internal Antenna

25x25x4 GPS Internal Antenna

Item

Specifications

Antenna

Center Frequency

1575.42±3MHz

Band Width

CF±5MHz

Polarization

RHCP

Gain

5dBic(Zenith)

V.S.W.R

<1.5

Impendance

50Ω

Axial Ratio

3dB(max)

Dimension

25*25*4mm

LNA

Gain

15±2dB

Noise Figure

<1.5

Supply Voltage

2.2~5V DC

Current Consumption

5~12mA

V.S.W.R

<2.0

Mechanical

Cable

RF1.13 or others

Connector

IPEX or others

Environmental

Operating Temperature

-40℃~+85℃

Relative Humidity

Up to 75%

Vibration

10 to 55Hz with 1.5mm amplitude 2hours

Environmentally Friendly

ROHS Compliant
