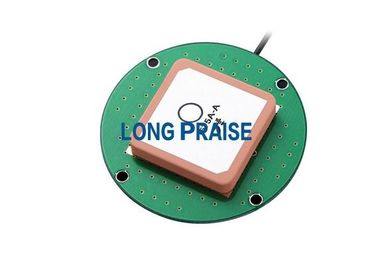

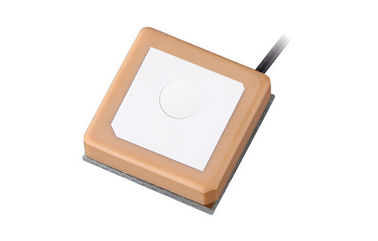

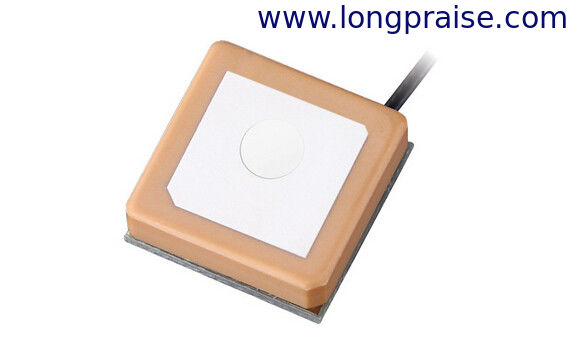

1575.42±3MHz RHCP 5dbi passive or active 25x25x4 Internal GPS Antenna, U.FL Connector (LPIG0901)

1575.42±3MHz RHCP 5dbi passive or active 25x25x4 Internal GPS Antenna, U.FL Connector (LPIG0901)

    • 1575.42±3MHz RHCP 5dbi passive or active 25x25x4 Internal GPS Antenna, U.FL Connector (LPIG0901)
    • 1575.42±3MHz RHCP 5dbi passive or active 25x25x4 Internal GPS Antenna, U.FL Connector (LPIG0901)
    • 1575.42±3MHz RHCP 5dbi passive or active 25x25x4 Internal GPS Antenna, U.FL Connector (LPIG0901)
  • 1575.42±3MHz RHCP 5dbi passive or active 25x25x4 Internal GPS Antenna, U.FL Connector (LPIG0901)

    Product Details:

    Place of Origin: Guangzhou
    Brand Name: LongPraise
    Certification: LongPraise
    Model Number: LongPraise

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Packaging Details: OPP/paper box
    Delivery Time: 3-7working days
    Payment Terms: T/T WESTERUNION PAYPAY
    Supply Ability: 30000PCS/DAY
    Contact Now
    Detailed Product Description
    Center Frequency: 1575.42±3MHz Band Width: CF±5MHz
    Polarization: RHCP Gain: 5dBic(Zenith)

    25x25x4 Internal GPS Antenna, U.FL Connector

    25x25x4 GPS Internal Antenna

    25x25x4 GPS Internal Antenna

    1575.42±3MHz RHCP 5dbi passive or active 25x25x4 Internal GPS Antenna, U.FL Connector (LPIG0901)

    Item

    Specifications

    Antenna

    Center Frequency

    1575.42±3MHz

    Band Width

    CF±5MHz

    Polarization

    RHCP

    Gain

    5dBic(Zenith)

    V.S.W.R

    <1.5

    Impendance

    50Ω

    Axial Ratio

    3dB(max)

    Dimension

    25*25*4mm

    LNA

    Gain

    15±2dB

    Noise Figure

    <1.5

    Supply Voltage

    2.2~5V DC

    Current Consumption

    5~12mA

    V.S.W.R

    <2.0

    Mechanical

    Cable

    RF1.13 or others

    Connector

    IPEX or others

    Environmental

    Operating Temperature

    -40℃~+85℃

    Relative Humidity

    Up to 75%

    Vibration

    10 to 55Hz with 1.5mm amplitude 2hours

    Environmentally Friendly

    ROHS Compliant



    Item Specifications
    Antenna Center Frequency 1575.42±3MHz
    Band Width CF±4MHz
    Polarization RHCP
    Gain 2dBi(Zenith)
    V.S.W.R <1.5
    Impedance 50Ω
    Axial Ratio 3dB(max)
    Dimension 18*18*4mm
    LNA Gain 20±2dB
    Noise Figure <1.3
    Supply Voltage 3V DC
    Current Consumption 9mA
    V.S.W.R <2.0
    Mechanical Cable RF1.13/RF1.37 or others
    Connector IPEX or others
    Mounting Method Screw
    Environmental Operating Temperature -40℃~+85℃
    Relative Humidity Up to 75%
    Vibration 10 to 55Hz with 1.5mm amplitude 2hours
    Environmentally Friendly ROHS Compliant
