1575.42MHz GPS ceramic antenna 25x25x4mm GPS navigation module dedicated active ceramic an

Product Details:

Place of Origin:	Guangzhou
Brand Name:	LongPraise
Certification:	LongPraise
Model Number:	LongPraise

Payment & Shipping Terms:

Minimum Order Quantity:	1
Packaging Details:	OPP/paper box
Delivery Time:	3-7working days
Payment Terms:	T/T WESTERUNION PAYPAY
Supply Ability:	30000PCS/DAY

Contact Now

Detailed Product Description

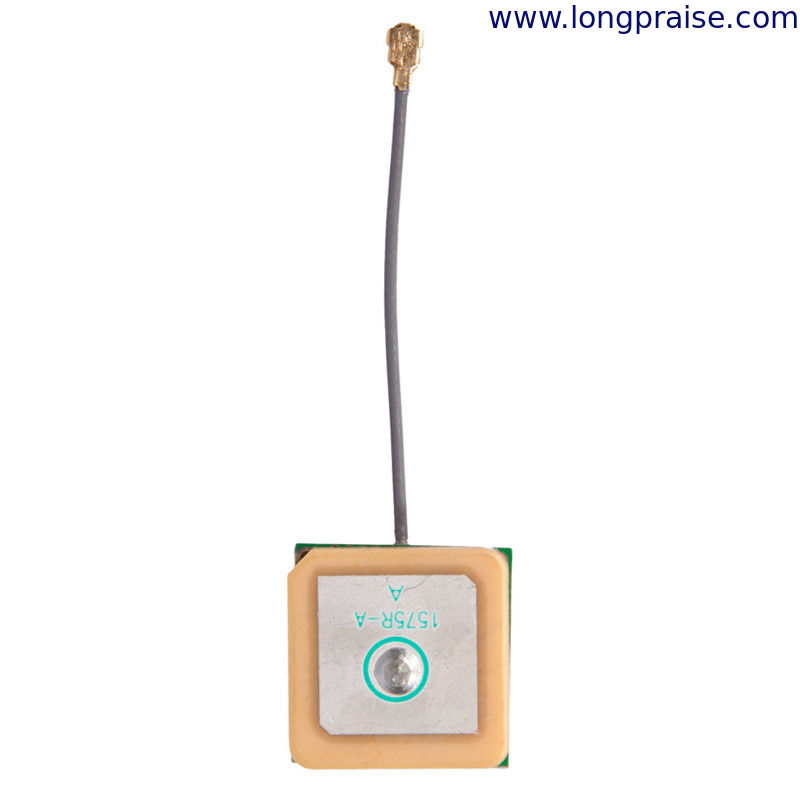

25x25x4 GPS Internal Antenna

Name: 1575.42MHz GPS ceramic antenna 25x25x4mm GPS navigation module dedicated active ceramic an
Brand: LongPraise
SKU: LongPraise
Price: 1 USD
Availability: InStock
Rating: 4.6 (129 reviews)

Item		Specifications
Antenna	Center Frequency	1575.42±3MHz
	Band Width	CF±5MHz
	Polarization	RHCP
	Gain	5dBic(Zenith)
	V.S.W.R	＜1.5
	Impendance	50Ω
	Axial Ratio	3dB(max)
	Dimension	25254mm
LNA	Gain	15±2dB
	Noise Figure	＜1.5
	Supply Voltage	2.2~5V DC
	Current Consumption	5~12mA
	V.S.W.R	＜2.0
Mechanical	Cable	RF1.13 or others
Mechanical	Connector	IPEX or others
Environmental	Operating Temperature	-40℃~+85℃
	Relative Humidity	Up to 75%
	Vibration	10 to 55Hz with 1.5mm amplitude 2hours
	Environmentally Friendly	ROHS Compliant
