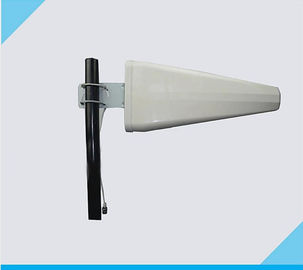

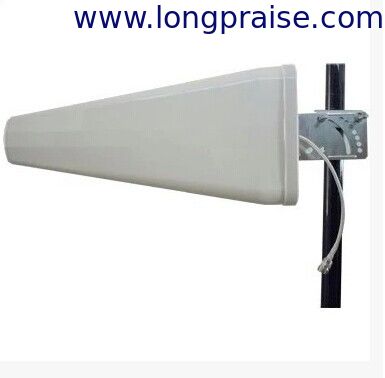

445*210*65mm 698-960/1710-2700MHz 15dBi Vertical 4G log-periodic antenna (LP4G002)

445*210*65mm 698-960/1710-2700MHz 15dBi Vertical 4G log-periodic antenna (LP4G002)

    • 445*210*65mm 698-960/1710-2700MHz 15dBi   Vertical 4G log-periodic antenna (LP4G002)
    • 445*210*65mm 698-960/1710-2700MHz 15dBi   Vertical 4G log-periodic antenna (LP4G002)
    • 445*210*65mm 698-960/1710-2700MHz 15dBi   Vertical 4G log-periodic antenna (LP4G002)
  • 445*210*65mm 698-960/1710-2700MHz 15dBi   Vertical 4G log-periodic antenna (LP4G002)

    Product Details:

    Place of Origin: Guangzhou
    Brand Name: LongPraise
    Certification: LongPraise
    Model Number: LongPraise

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Packaging Details: OPP/paper box
    Delivery Time: 3-7working days
    Payment Terms: T/T WESTERUNION PAYPAY
    Supply Ability: 30000PCS/DAY
    Contact Now
    Detailed Product Description
    Frequency Range: 698-960/1710-2700MHz Gain: 15dBi
    Polarization: Vertical Size: 445*210*65mm

    4G log-periodic antenna 700-2700MHZ high-gain directional antenna

    445*210*65mm 698-960/1710-2700MHz 15dBi   Vertical 4G log-periodic antenna (LP4G002)

    445*210*65mm 698-960/1710-2700MHz 15dBi   Vertical 4G log-periodic antenna (LP4G002)



    Model NO

    LP4G002

    Frequency Range

    698-960/1710-2700MHz

    Bandwidth -MHz

    262/990

    Gain

    15dBi

    beam width

    H:90/70 V:60/55

    VSWR

    ≤1.5

    Input Impedance

    50ohm

    Polarization

    Vertical

    Max power

    50W

    Lightning protection

    DC ground

    Connector

    N male

    Mechanical Specifications

    Size

    445*210*65mm

    Antenna weight

    0.75kg

    Working Temperature

    -40-60

    Rated Wind Velocity

    60m/s

    Radome color

    white

    Mounting way

    hold in the pole

    Pole diameter

    35-50(mm)



    Model NO LP4G002
    Frequency Range 698-960/1710-2700MHz
    Bandwidth -MHz 262/990
    Gain 15dBi
    beam width H:90/70 V:60/55
    VSWR ≤1.5
    Input Impedance 50ohm
    Polarization Vertical
    Max power 50W
    Lightning protection DC ground
    Connector N male
    Mechanical Specifications
    Size 445*210*65mm
    Antenna weight 0.75kg
    Working Temperature -40-60
    Rated Wind Velocity 60m/s
    Radome color white
    Mounting way hold in the pole
    Pole diameter 35-50(mm)
