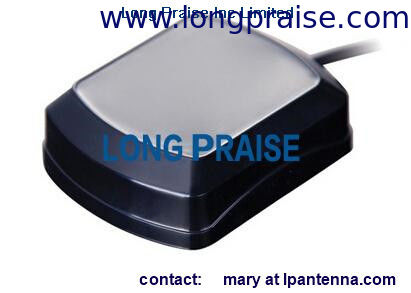

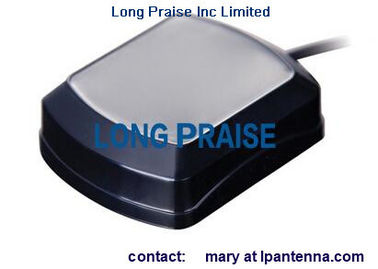

(Manufactory) High quality GPS/GLONASS/COMPASS antenna LPDG001

(Manufactory) High quality GPS/GLONASS/COMPASS antenna LPDG001

(Manufactory) High quality GPS/GLONASS/COMPASS antenna LPDG001

Product Details:

Place of Origin: Guangzhou
Brand Name: LongPraise
Certification: LongPraise
Model Number: LongPraise

Payment & Shipping Terms:

Minimum Order Quantity: 1
Packaging Details: OPP/paper box
Delivery Time: 3-7working days
Payment Terms: T/T WESTERUNION PAYPAY
Supply Ability: 30000PCS/DAY
Contact Now
Detailed Product Description

(Manufactory) High quality GPS/GLONASS/COMPASS antenna  LPDG001



 Manufacture Hot selling dual band gps and glonass antenna for car LPDG001

GPS and GLONASS combination antenna LPDG001

Item



Specifications

Antenna

Center Frequency

1575.42+-1MHz   1602-1610MHz

Band Width

CF±5MHz

Polarization

RHCP

Gain

5dBic(Zenith)

V.S.W.R

<1.5

Impedance

50ohm

Axial Ratio

3dB(max)

Dimension

25*25*4mm

LNA

Gain

28±2dB

Noise Figure

<1.5

Filter Insertion Loss

<3dB

Ex-band Attenuation

12dB@CF+50MHz/16dB@CF-50MHz

Supply Voltage

2.2-5V DC

Current Consumption

5-15mA

V.S.W.R

<2.0

Mechanical

Cable

RG174

Connector

SMA/MCX/FAKRA or others

Radome Material

ABS

Mounting Method

Adhesive/Magnetic

Environmental

Operating Temperature

- 40-+85

Relative Humidity

Up to 95%

Ingress Protection

IP67

Vibration

10 to 55Hz with 1.5mm amplitude 2hours

Environmentally Friendly

ROHS Compliant
