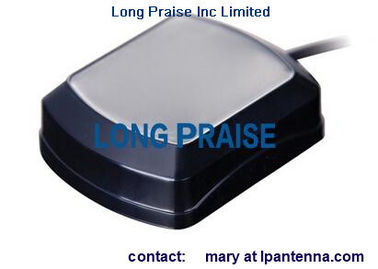

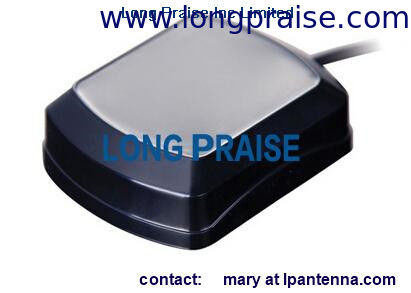

GPS+GLONASS comnination Antenna multi band magnetic mount RG174 cable LPDG001

GPS+GLONASS comnination Antenna multi band magnetic mount RG174 cable LPDG001

GPS+GLONASS comnination Antenna multi band magnetic mount RG174 cable LPDG001

Product Details:

Place of Origin: Guangzhou
Brand Name: LongPraise
Certification: LongPraise
Model Number: LongPraise

Payment & Shipping Terms:

Minimum Order Quantity: 1
Packaging Details: OPP/paper box
Delivery Time: 3-7working days
Payment Terms: T/T WESTERUNION PAYPAY
Supply Ability: 30000PCS/DAY
Contact Now
Detailed Product Description

GPS+GLONASS comnination Antenna multi band magnetic mount RG174 cable  LPDG001



 Manufacture Hot selling dual band gps and glonass antenna for car LPDG001

GPS and GLONASS combination antenna LPDG001

Item



Specifications

Antenna

Center Frequency

1575.42+-1MHz   1602-1610MHz

Band Width

CF±5MHz

Polarization

RHCP

Gain

5dBic(Zenith)

V.S.W.R

<1.5

Impedance

50ohm

Axial Ratio

3dB(max)

Dimension

25*25*4mm

LNA

Gain

28±2dB

Noise Figure

<1.5

Filter Insertion Loss

<3dB

Ex-band Attenuation

12dB@CF+50MHz/16dB@CF-50MHz

Supply Voltage

2.2-5V DC

Current Consumption

5-15mA

V.S.W.R

<2.0

Mechanical

Cable

RG174

Connector

SMA/MCX/FAKRA or others

Radome Material

ABS

Mounting Method

Adhesive/Magnetic

Environmental

Operating Temperature

- 40-+85

Relative Humidity

Up to 95%

Ingress Protection

IP67

Vibration

10 to 55Hz with 1.5mm amplitude 2hours

Environmentally Friendly

ROHS Compliant
