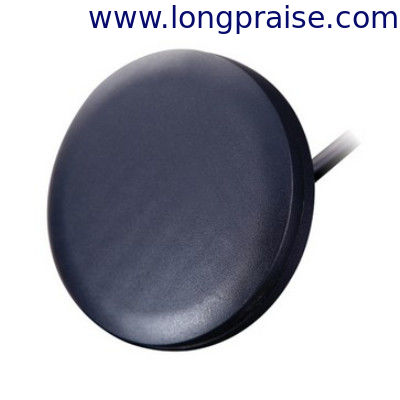

Name: GPS and GSM combination antenna LPB002
Brand: long praise inc limited
SKU: LongPraise
Availability: InStock

Home Products GPS and GSM Antenna

GPS and GSM combination antenna LPB002

Product Details:

Place of Origin:	Guangzhou
Brand Name:	LongPraise
Certification:	LongPraise
Model Number:	LongPraise

Payment & Shipping Terms:

Minimum Order Quantity:	1
Packaging Details:	OPP/paper box
Delivery Time:	3-7working days
Payment Terms:	T/T WESTERUNION PAYPAY
Supply Ability:	30000PCS/DAY

Contact Now

Detailed Product Description

GPS and GSM combination antenna LPB002

GPS+GSM Combination Antenna

Item

Specifications

GPS Antenna

Dielectric

Antenna

Center Frequency

1575.42±1MHz

Band Width

CF±5MHz

Polarization

RHCP

Gain

5dBic(Zenith)

V.S.W.R

＜1.5

Impendance

50Ω

Axial Ratio

3dB(max)

LNA

Gain

28±2dB

Noise Figure

＜1.5

Ex-band Attenuation

12dB@CF+50MHz/16dB@CF-50MHz

V.S.W.R

＜2.0

Supply Voltage

2.2~5V DC

Current Consumption

5~15mA

GSM Antenna

Frequency Range

824~960MHz/1710~2170MHz

V.S.W.R

＜2.0

Polarization

Linear

Gain

2dBi

Impendance

50Ω

Mechanical

Cable

RG174

Connector

SMA/MCX/FAKRA or others

Radome Material

ABS

Mounting Method

Magnet/Adhesive

Environmental

Operating Temperature

-40℃~+85℃

Relative Humidity

Up to 95%

Ingress Protection

IP67

Vibration

10 to 55Hz with 1.5mm amplitude 2hours

Environmentally Friendly

ROHS Compliant

If you like GPS and GSM Antenna wit screw, you can click here http://www.longpraise.com/sell-2581380-gps-and-gsm-antenna-lpb001.html
