| Place of Origin: | Guangzhou |
| Brand Name: | LongPraise |
| Certification: | LongPraise |
| Model Number: | LongPraise |
| Minimum Order Quantity: | 1 |
|---|---|
| Packaging Details: | OPP/paper box |
| Delivery Time: | 3-7working days |
| Payment Terms: | T/T WESTERUNION PAYPAY |
| Supply Ability: | 30000PCS/DAY |
|

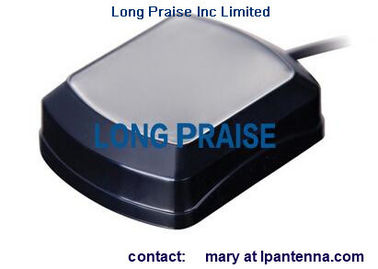

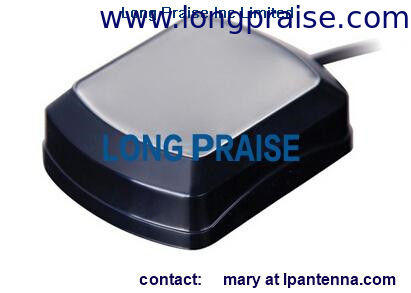

Item |
|
Specifications |
|
Antenna |
Center Frequency |
1575.42+-1MHz 1602-1610MHz |
|
Band Width |
CF±5MHz |
|
|
Polarization |
RHCP |
|
|
Gain |
5dBic(Zenith) |
|
|
V.S.W.R |
<1.5 |
|
|
Impedance |
50ohm |
|
|
Axial Ratio |
3dB(max) |
|
|
Dimension |
25*25*4mm |
|
|
LNA |
Gain |
28±2dB |
|
Noise Figure |
<1.5 |
|
|
Filter Insertion Loss |
<3dB |
|
|
Ex-band Attenuation |
12dB@CF+50MHz/16dB@CF-50MHz |
|
|
Supply Voltage |
2.2-5V DC |
|
|
Current Consumption |
5-15mA |
|
|
V.S.W.R |
<2.0 |
|
|
Mechanical |
Cable |
RG174 |
|
Connector |
SMA/MCX/FAKRA or others |
|
|
Radome Material |
ABS |
|
|
Mounting Method |
Adhesive/Magnetic |
|
|
Environmental |
Operating Temperature |
- 40-+85 |
|
Relative Humidity |
Up to 95% |
|
|
Ingress Protection |
IP67 |
|
|
Vibration |
10 to 55Hz with 1.5mm amplitude 2hours |
|
|
Environmentally Friendly |
ROHS Compliant |
